WALBRO 525LPH IN TANK HIGH FLOW FUEL PUMP E85
Walbro / TI Automotive 525 lph Unleaded & E85 In Tank Fuel Pump. This is the latest and greatest version of the venerable Walbro 460 lph pump, with even higher flow than ever.

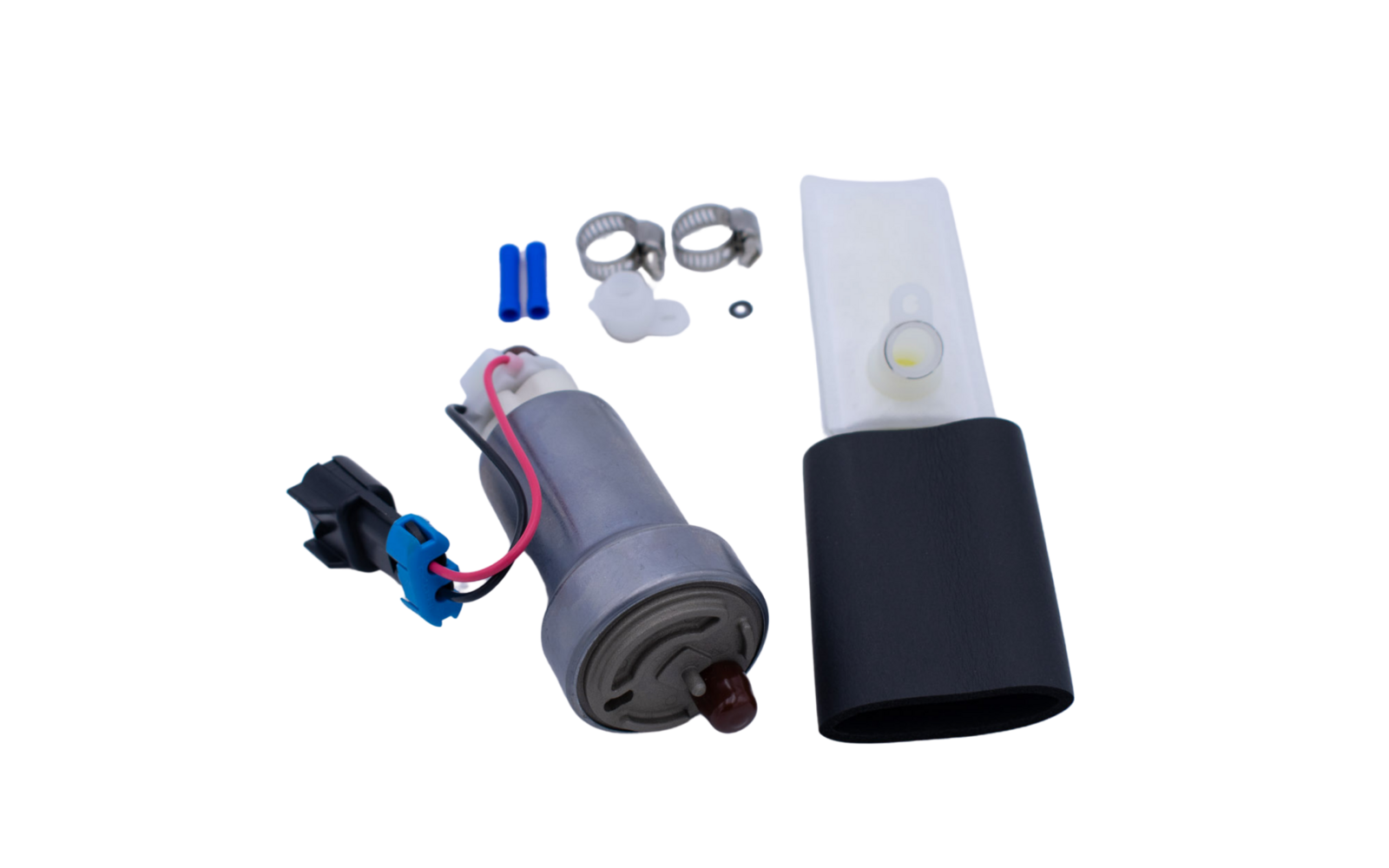

Comes complete with installation kit including fuel pump, wire harness, and pickup filter. Genuine hologrammed, locally delivered fuel pump sourced directly from the Australian distributor for Walbro / TI Automotive.
These high flow & pressure fuel pumps feature an impeller with two parallel rows of turbine blades that feed two high-pressure pumping channels. This modern design results in minimal noise and current draw, and efficiency that’s 20 percent greater than conventional fuel pumps like your standard Bosch 044 or 023
The Walbro 525lph fuel pump flows enough fuel to support 900hp and is ideal for very high power boosted applications running E85/Ethanol, or anywhere a Walbro 255 or Walbro 460 fuel pump won’t flow enough. If you are under 500hp, see our other items for the Walbro GSS341 / GSS342 255 lph pumps.
Suits the following vehicles (along with many others) with minor cradle mods:
- Honda Civic, Integra
- Mitsubishi Lancer Evo
- Subaru WRX
- Nissan Skyline, Silvia, 180sx
- and many more.
Specifications
- Common names: Walbro 525, Hellcat
- Flow rate: 525 lph @ 13.5v (3 bar)
- E85 Compatible: Yes
- Max current draw: 25A (Make sure your wiring can handle this beast!)
- Body Diameter: 39mm / 50mm
- Length: 131mm
- Fuel Outlet Diameter: 11mm OD (10.8 – 9.1mm)
- Pressure Relief: 112psi
- Check Valve: Yes (Inbuilt)
(F90000285)
SKU | F90000285 |
Brand | WALBRO |
Shipping Weight | 50.0000kg |
Shipping Width | 0.050m |
Shipping Height | 0.050m |
Shipping Length | 0.050m |
