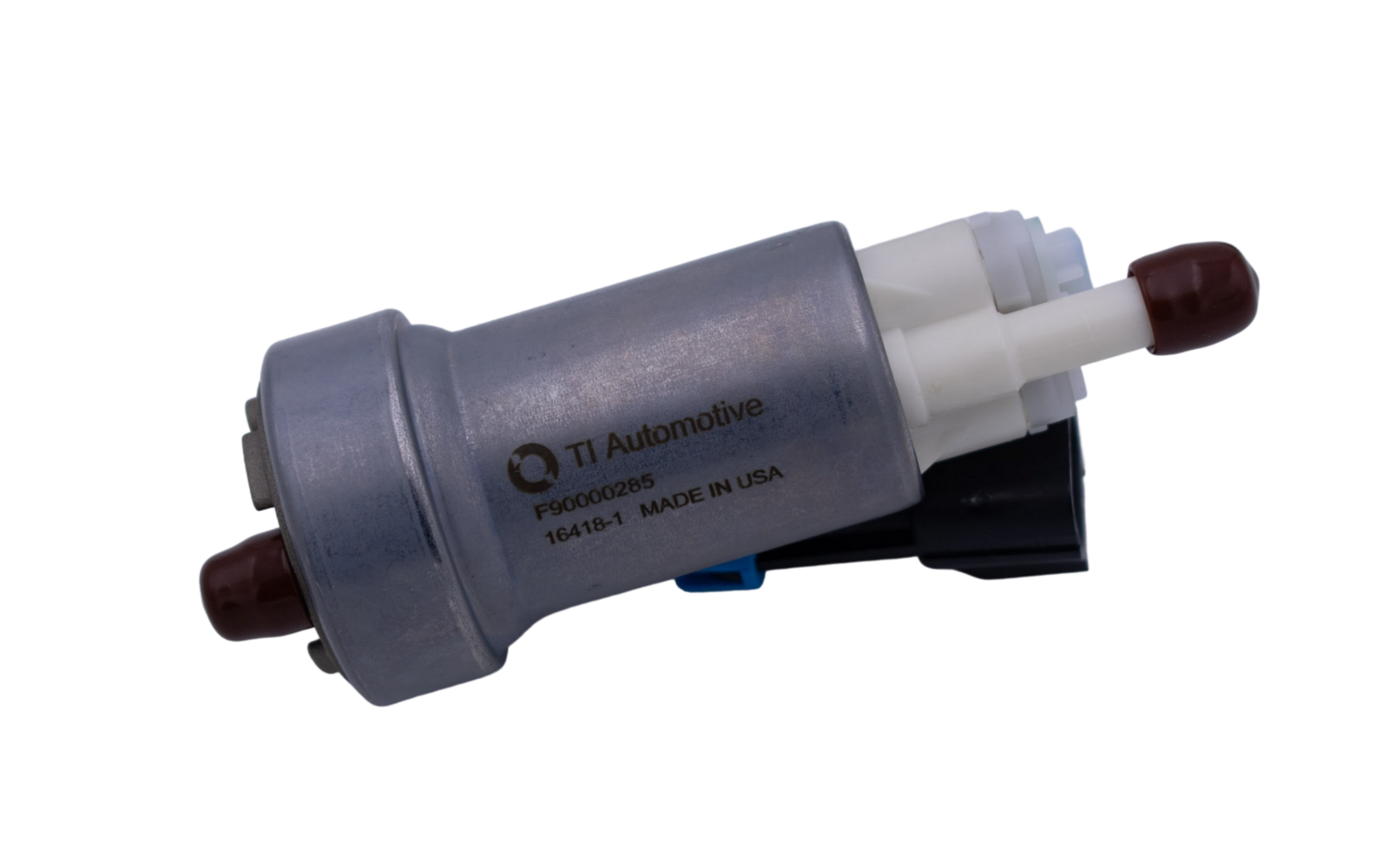

WALBRO 460LPH IN TANK HIGH FLOW FUEL PUMP E85

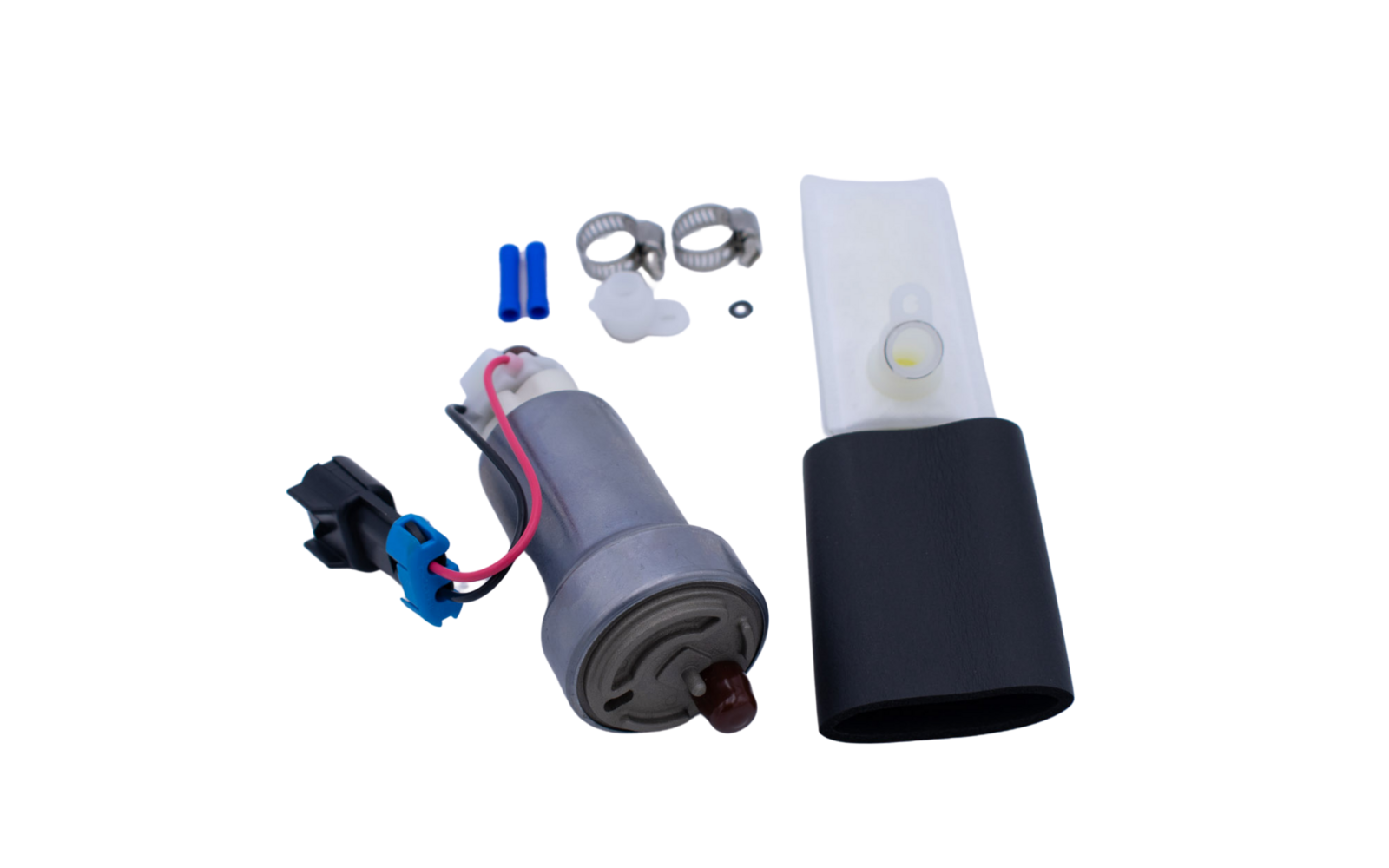

Walbro 460 lph Unleaded & E85 in tank Fuel Pump. Comes complete with installation kit including fuel pump, wire harness, and pickup filter as pictured. Genuine locally delivered fuel pump, sourced directly from the Australian distributor for Walbro / TI Automotive and complete with hologram for authenticity.
The Walbro 460 / 450 lph fuel pump flows over 600hp and is ideal for high power boosted applications running E85/Ethanol, or anywhere a Walbro 255 fuel pump won’t flow enough. If you are under 500hp, see our other items for the Walbro GSS342 255 lph pumps.
These high flow & pressure fuel pumps feature an impeller with two parallel rows of turbine blades feeding two high-pressure pumping channels. This modern design results in very low noise and current draw, and efficiency that’s 20 percent greater than conventional fuel pumps like your standard Bosch 044 or 023.
Submersible hose, convoluted tubing, crimp clamps, ring clamps, surge tanks, fuel regs, and fittings etc are all available in our other listings.
Suits the following vehicles (along with many others) with minor cradle mods:
- Honda Civic, Integra
- Mitsubishi Lancer Evo
- Subaru WRX
- Nissan Skyline, Silvia, 180sx
- and many more.
Specifications
- Common names: Walbro 450, TIA485-2, GST-450, Walbro 465, 400E, Walbro 425
- Flow rate: 415lph @ 13.5v (3 bar)
- E85 Compatible: Yes
- Max current draw: 22A (15A average)
- Body Diameter: 39mm / 50mm
- Length: 131mm
- Fuel Outlet Diameter: 11mm OD (10.8 – 9.1mm)
- Pressure Relief: 87psi (see other items for 112psi high pressure version – only needed at 30+psi boost)
- Check Valve: Yes (Inbuilt)
(F90000267)
SKU | F90000267 |
Brand | WALBRO |
Shipping Weight | 50.0000kg |
Shipping Width | 0.050m |
Shipping Height | 0.050m |
Shipping Length | 0.050m |
