SKU: 19301-AP1-000
- Spoon (Std) Valve opening temperature: 68 ° C (78 ° C)
- Spoon (Std) Valve full opening temperature: 83 ° C (90 ° C)
AU $125.00 GST incl
We are now the authorised sole Spoon Sports distributor for AU/NZ, large range of products in stock!
*A $6 monthly account fee applies
(only payable if a balance is owing) See full Ts & Cs

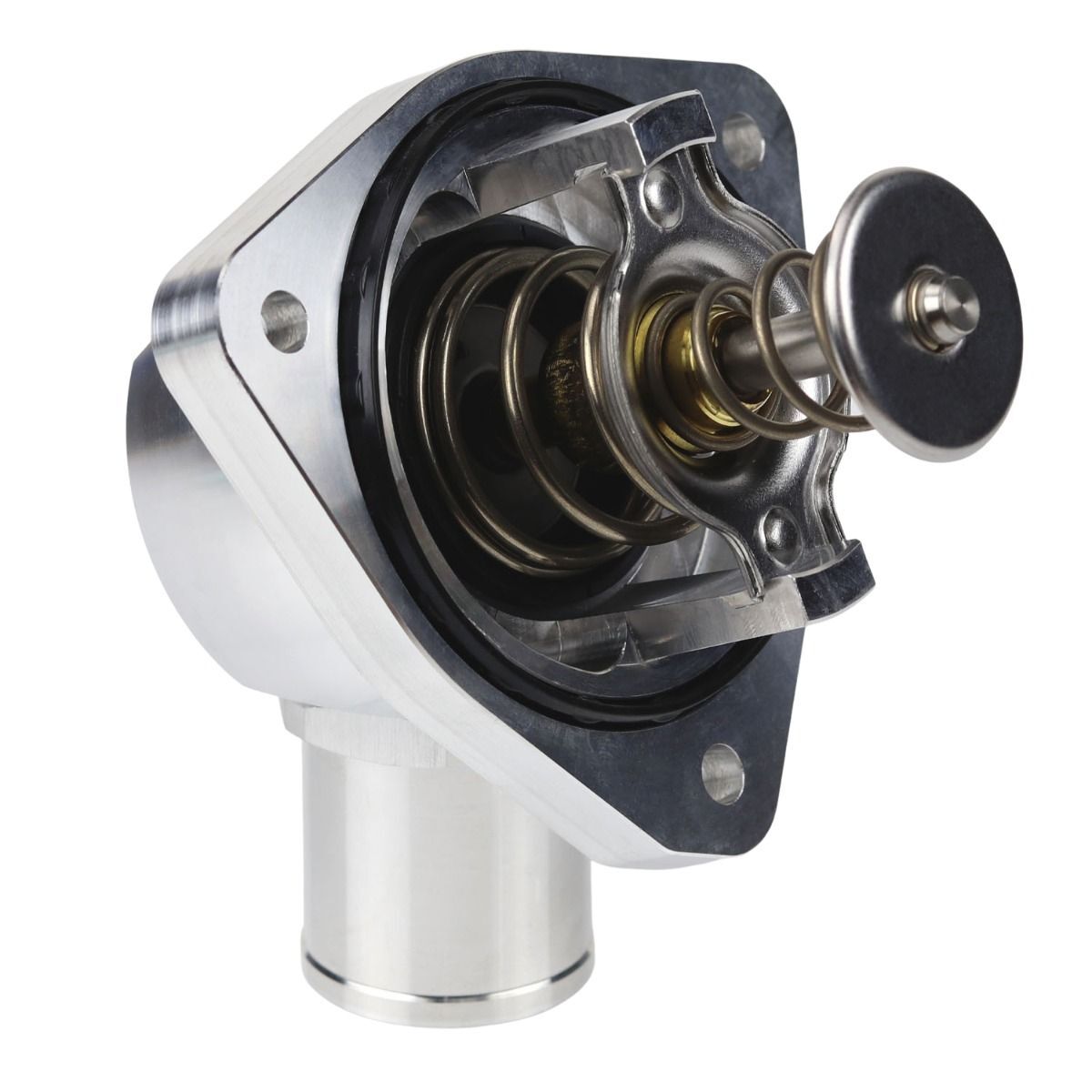

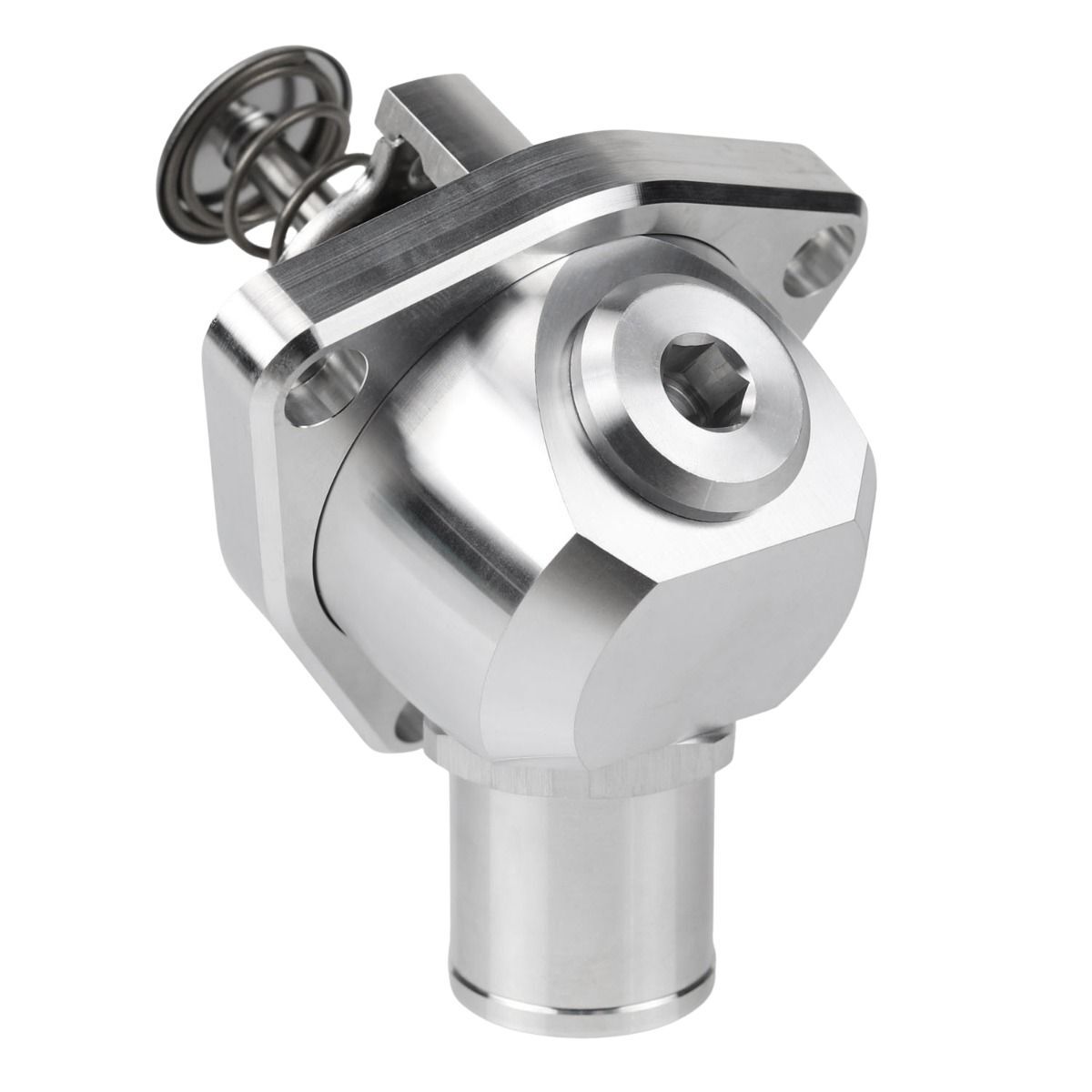

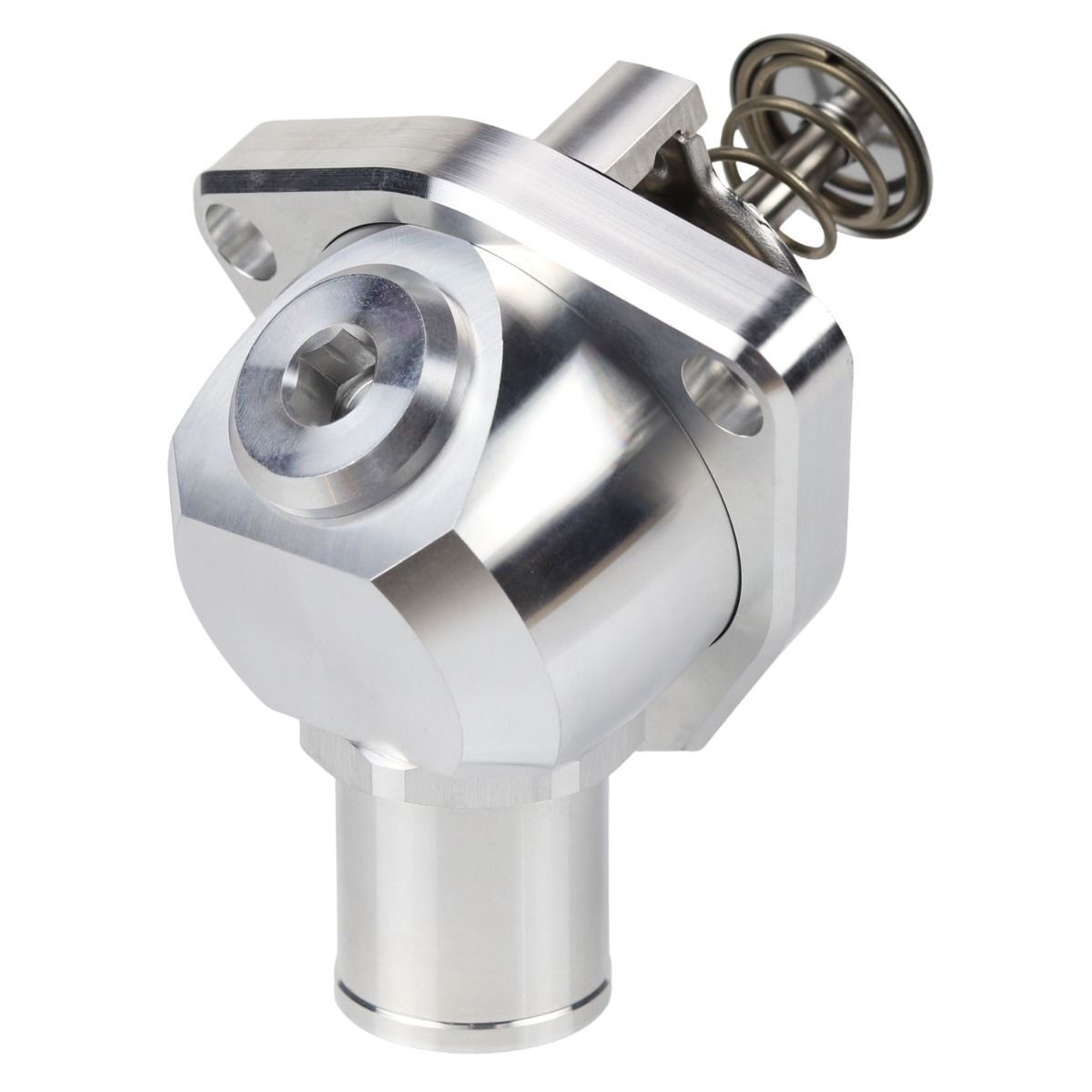

Introducing our new K24 swivel neck thermostat housing; it is fully machined from 6062-T6 billet Aluminium and is available with either a 32mm or AN16 hose connector. The outlet angle is the same as OEM and is within 10mm offset from the mounting flange face to ensure all OEM and aftermarket hoses fit perfectly. The housing also incorporates an M22 x 1.5 hole for radiator fan switches – perfect for k-swaps.
Using top of the range metrology grade laser scanning and 3D printing equipment we can ensure the products are designed for perfect operation and fitment. For example, our 3-bolt mounting flange aligns perfectly with the outside profile of the OE plastic mounting face.
Our thermostat housing is the only aftermarket housing you should run on your vehicle, unlike the competition we use the OEM dual plunger thermostat that ensures operation exactly like Honda intended. Other units actually reduce the efficiency of your cooling system by not using a dual plunger thermostat design which is there to gradually reduce and stop flow through the bypass port when things get hot. Also, plain steel is not used anywhere in our housings, this ensures that with our units you will not face orange rust covering all surfaces inside your engine and radiator, further reducing the efficiency of your cooling system.
The unit is available with or without a radiator fan switch, if you chose without then it will be supplied with a custom made billet Aluminium M22 blanking plug and O-ring. The fan switch supplied is manufactured in the EU and are rated to over 1 million operations, we do not substitute on quality with our products! The fan switch turns on at 95c and off at 86c.
Specification | ||
Engine Compatibility | K24 K20Z4 only | |
Hose Connection | 32mm or AN16 | |
Switch Port | M22 x 1.5 | |
Thermostat Type | Dual Plunger | |
Material | 6062-T6 Billet Aluminium | |
Finish | Raw Billet Aluminium | |
Brand | T7Design |
(67B-A75-BB0)
SKU | 67B-A75-BB0 |
Brand | T7 DESIGN |
Shipping Weight | 3.0000kg |
Shipping Width | 0.200m |
Shipping Height | 0.200m |
Shipping Length | 0.200m |
Shipping Cubic | 0.008000000m3 |
