T7 DESIGN HONDA K20Z3/K24A3 WATER OUTLET NECK -16AN
Honda K20Z3/K24A2 Water Outlet Neck

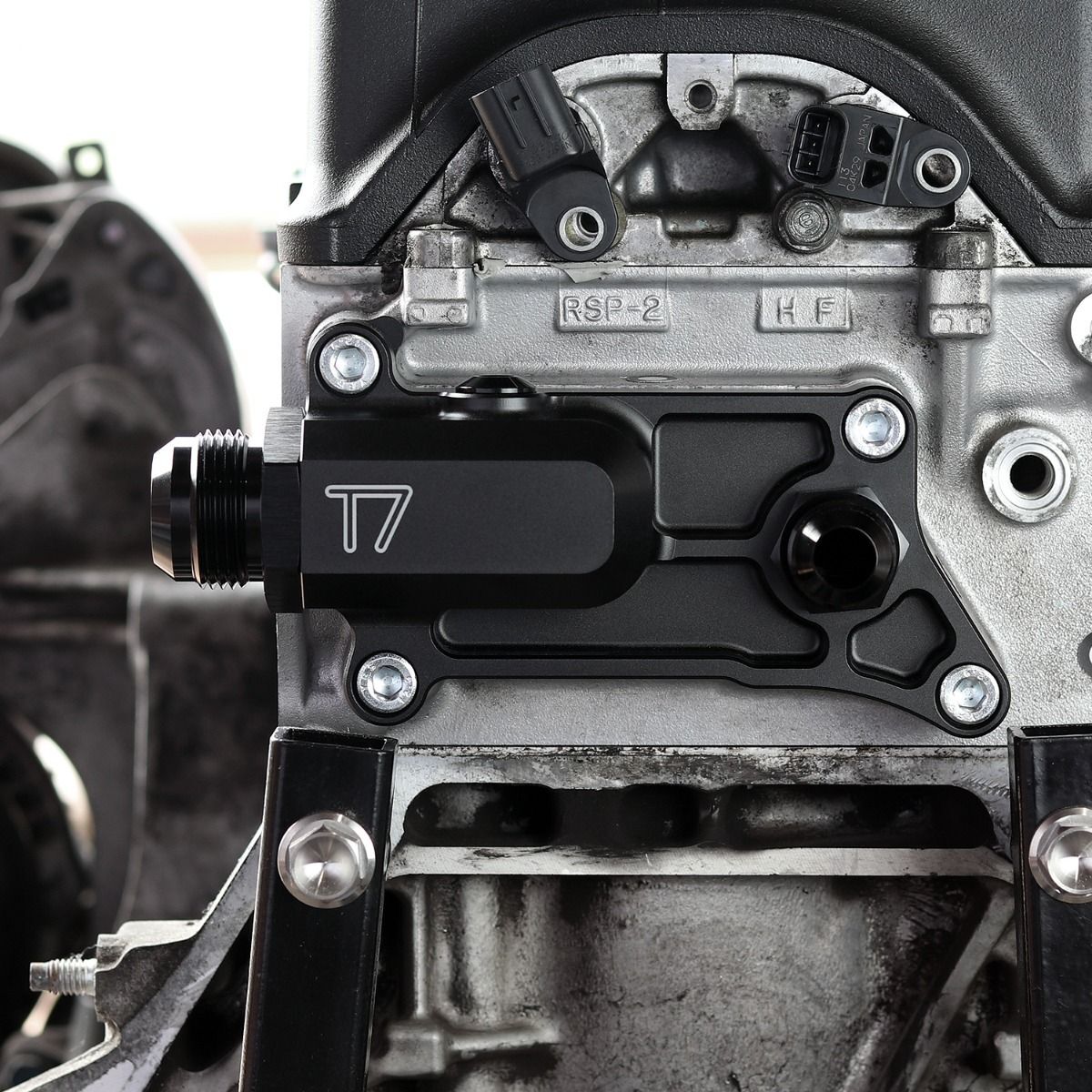

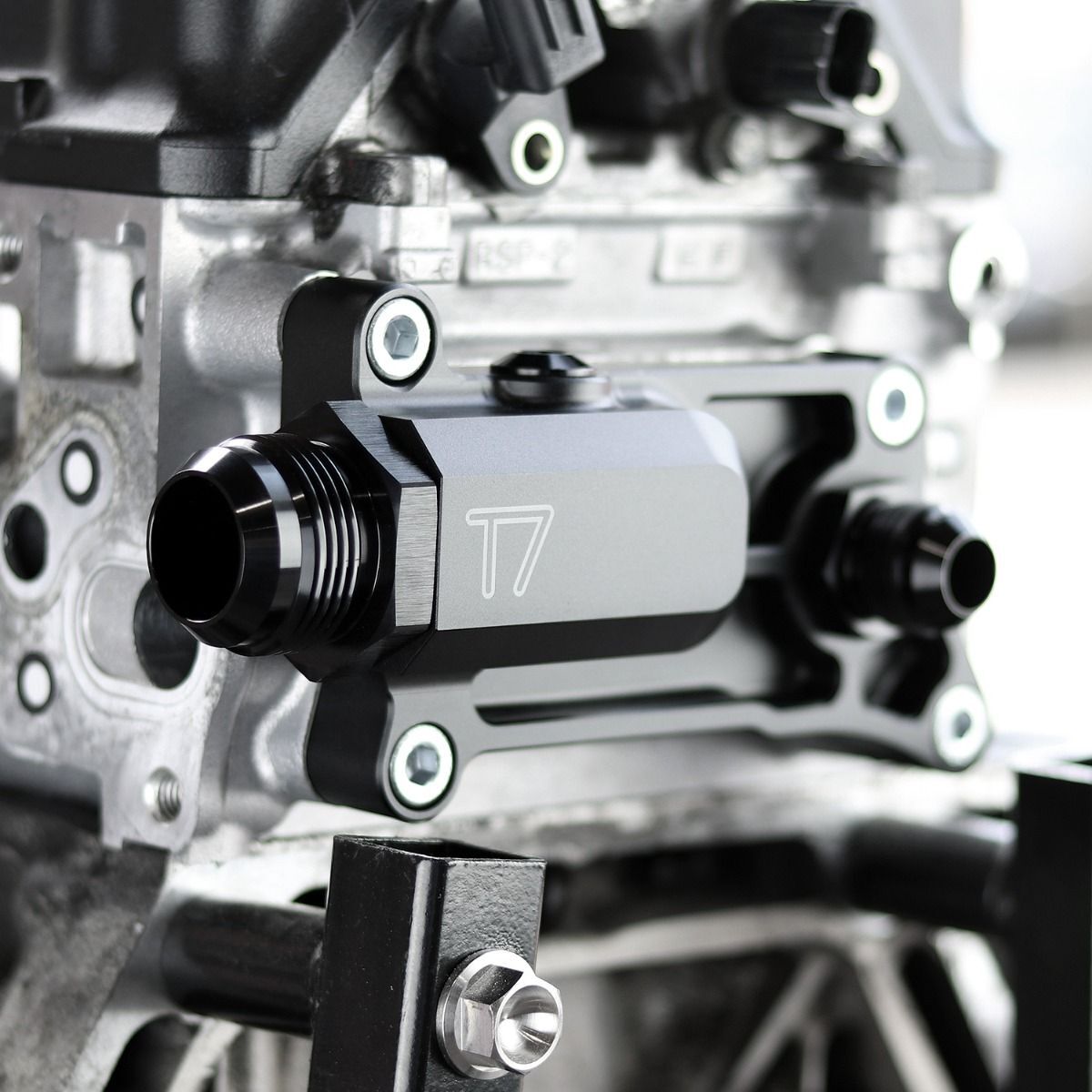

Introducing our new water outlet neck for the Honda K20Z4 engine, which offers the end user more options for custom and race set ups over the original water outlet neck. For example, we have included an ORB16 threaded outlet to allow the user to run either a 32mm hose adapter, or an AN16 fitting. Located on the top of the outlet plate is an ORB06 female thread to allow easy bleeding of the engine coolant, or it could be used to route an air bleed hose to a header tank utilising a variety of adapters. Located on the front face, we have included an ORB10 female thread which can be used for various application: for the installation of the water feed to the heater core, it can be repurposed as a turbo water feed, or the port can simply be blanked off using our slimline port plugs.
FEATURES & BENEFITS
- ORB16: For top radiator hose, OEM 32mm Hose barb or AN16 options available.
- ORB06: Air bleed, utilising an ORB06 slimline blanking plug or an adapter for a header tank.
- ORB10: For heater outlet or blanked off utilising a slimline port plug.
- Fits the following engine models: K20Z4, often found in the Honda Civic FN2 Type R (may fit other variants with the same cylinder head, TBC.)
- Designed using metrology-grade 3D laser scanning ensuring a perfect, direct fitment.
Specification | ||
Construction | Billet 6061-T6 Aluminium | |
Finish | Hard Anodised Black | |
Manufacturer | T7Design |
Kit Contents
Quantity | Description |
1x | K20Z4 Water Outlet Plate |
1x | Metal Pressed Gasket |
4x | M8 x 30mm BZP Cap Head Bolts |
(847-C8F-207-16AN)
SKU | 847-C8F-207-16AN |
Brand | T7 DESIGN |
Shipping Weight | 1.0000kg |
Shipping Width | 0.100m |
Shipping Height | 0.100m |
Shipping Length | 0.100m |
Shipping Cubic | 0.001000000m3 |
