T7 DESIGN HONDA K20A FWD WATER OUTLET NECK -16AN

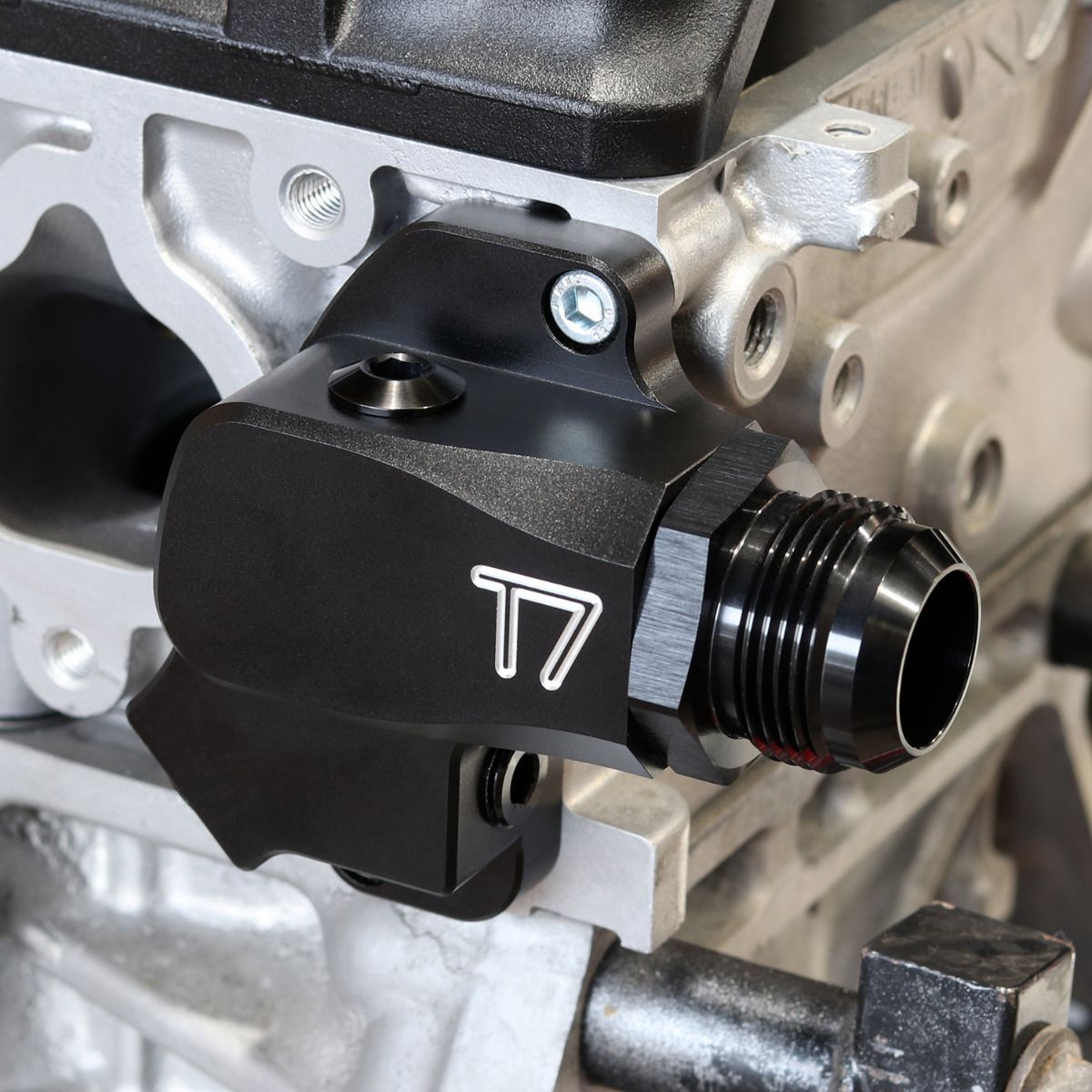

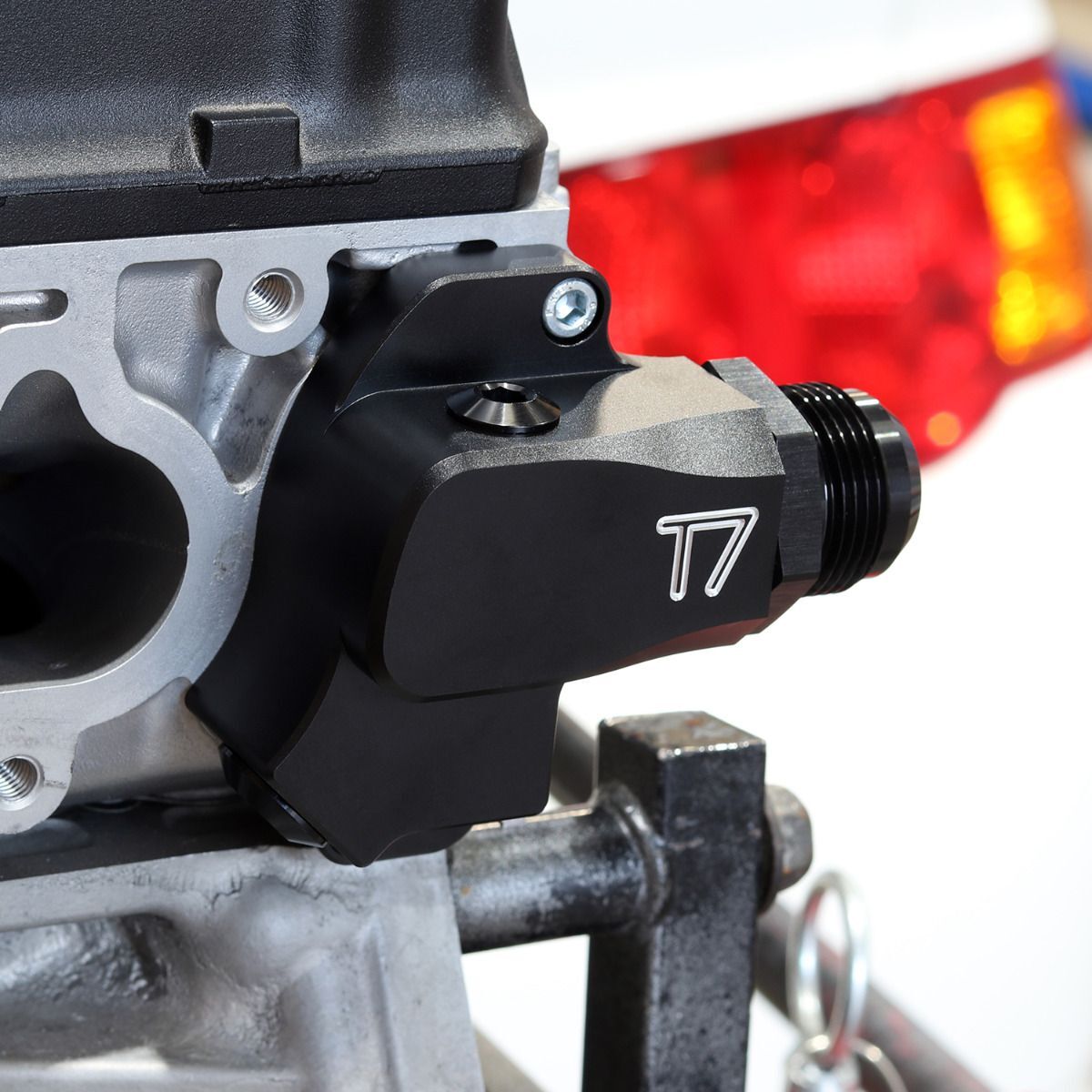

Honda K20 Front Wheel Drive (FWD) Water Outlet Neck
The T7Design K20 Water Outlet Neck offers the end user more options for custom and race set ups over the original water neck. For example, we have included an ORB16 threaded outlet to allow the user to run either a 32mm hose adapter, or an AN16 fitting, the thermostat bypass outlet is an ORB08 and can be plugged if not required (for example electric water pump conversions). On the top there is an ORB06 to allow easy bleeding of the K20 engine, or it could be used to route an air bleed hose to a header tank. Underneath the top rad hose outlet we have a 0RB06 threaded hole for the installation of temperature sensors with an adapter (not included).
FEATURES & BENEFITS
- ORB16: For top radiator hose, OEM 32mm Hose barb or AN16 options available.
- ORB08: Thermostat bypass hose, ORB08 to Barb or ORB08 blanking plug available.
- ORB06: Air bleed, ORB06 blanking plug included.
- ORB06: For temp sensor, blanking plug included if not used.
- Fits the following engine models: K20A, K20A2, K20A3, K20Z1 & K24A1
Specification | ||
Construction | Billet 6061-T6 Aluminium | |
Finish | Hard Anodised Black | |
Manufacturer | T7Design |
ATTENTION
- This product will only fit front wheel drive models only.
- Fits the following engine models: K20A, K20A2, K20A3, K20Z1 & K24A1
(96D-842-30A-16AN)
SKU | 96D-842-30A-16AN |
Brand | T7 DESIGN |
Shipping Weight | 1.0000kg |
Shipping Width | 0.100m |
Shipping Height | 0.100m |
Shipping Length | 0.100m |
Shipping Cubic | 0.001000000m3 |
