SKU: 7DD-12C-EE6
- Matte Black Finish
- Angle Fittings Not Incl
- Sensors Not Incl
AU $225.00 GST incl
We are now the authorised sole Spoon Sports distributor for AU/NZ, large range of products in stock!
*A $6 monthly account fee applies
(only payable if a balance is owing) See full Ts & Cs

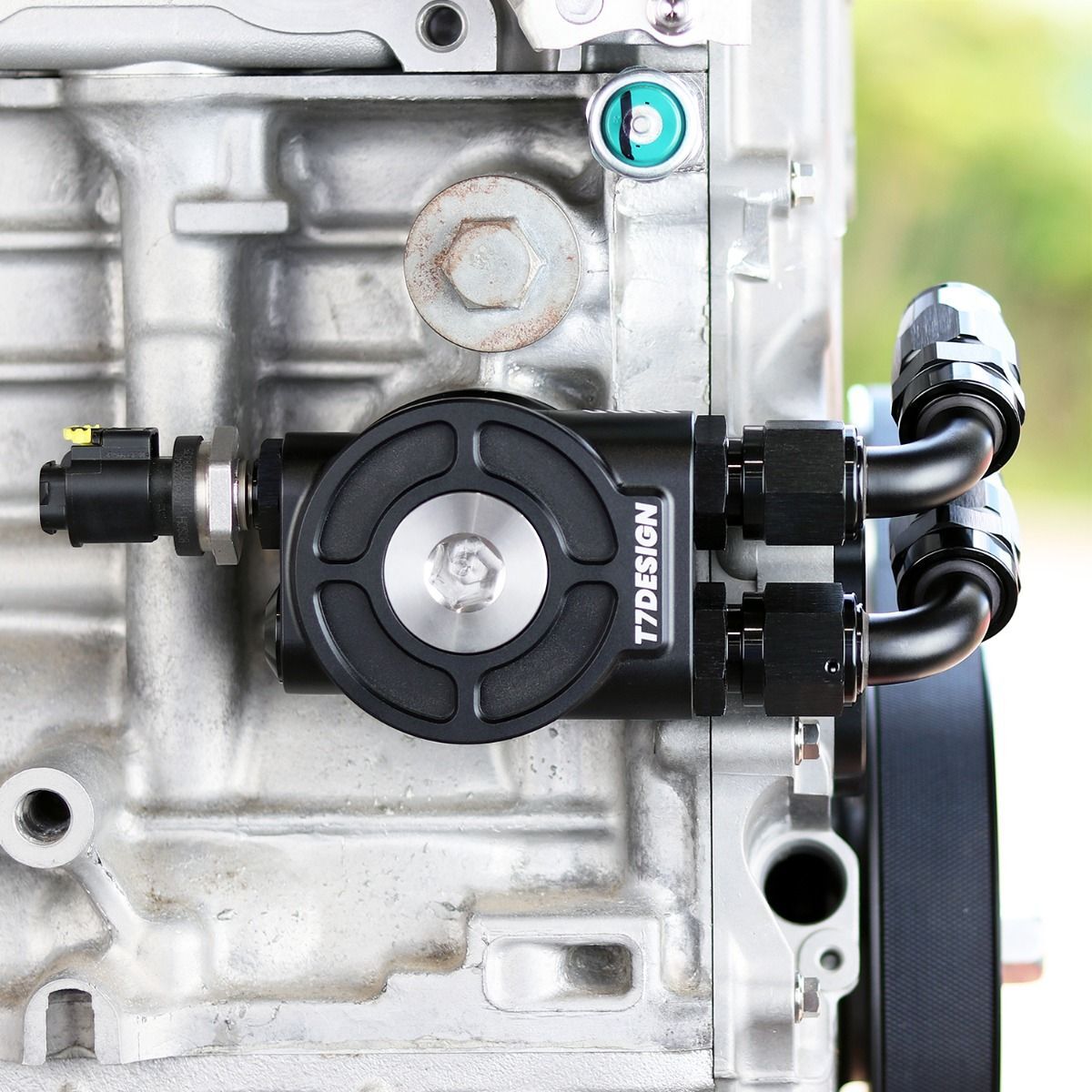

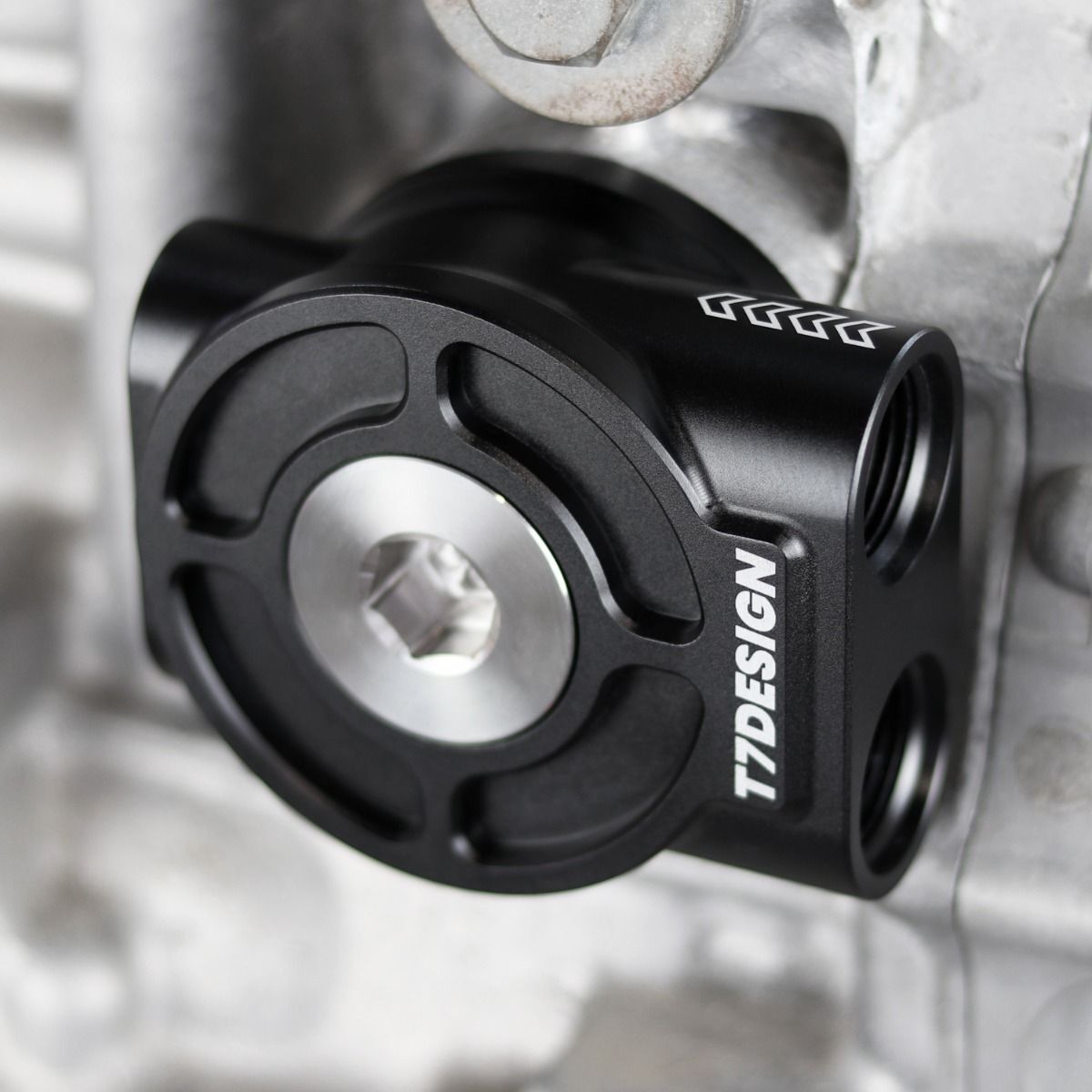

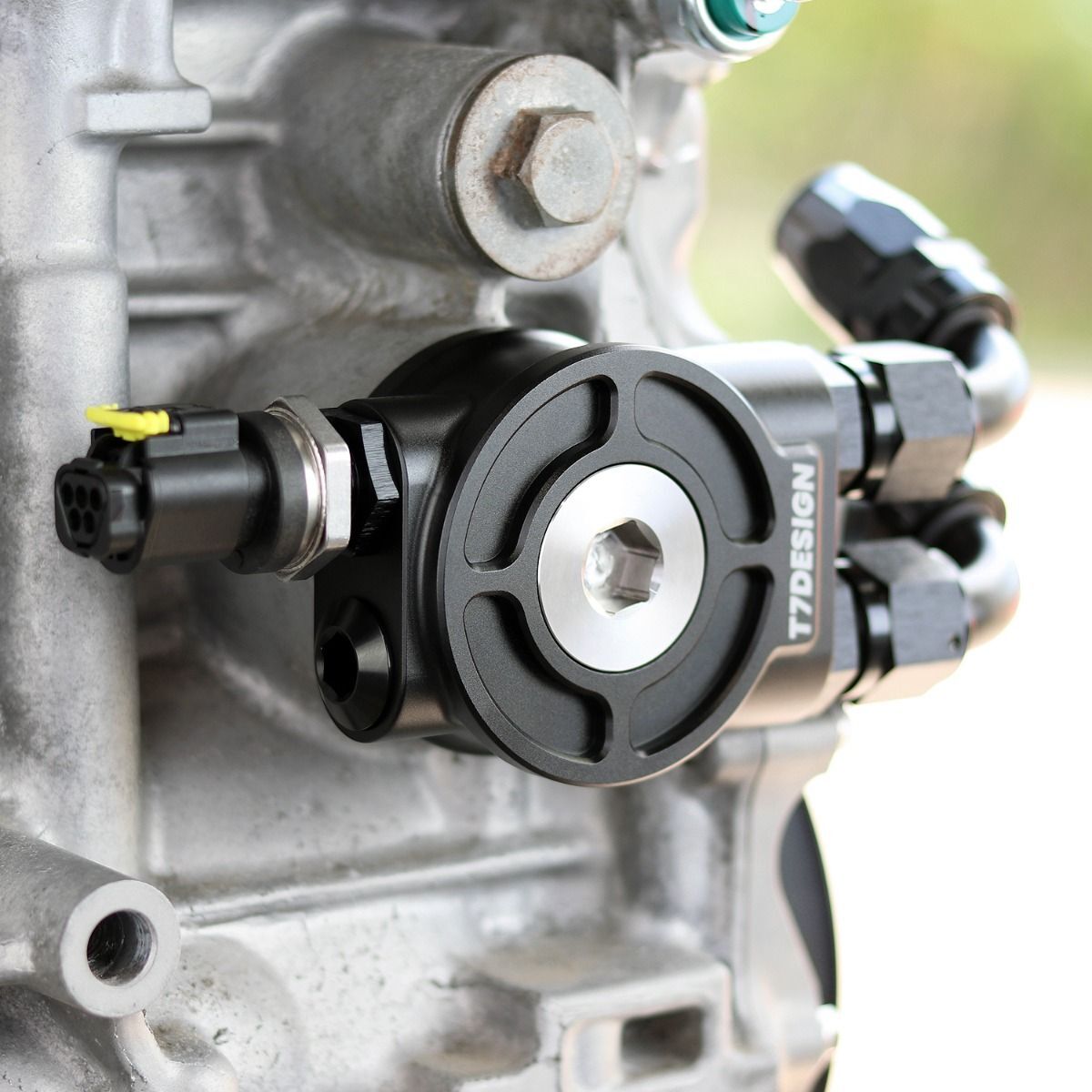

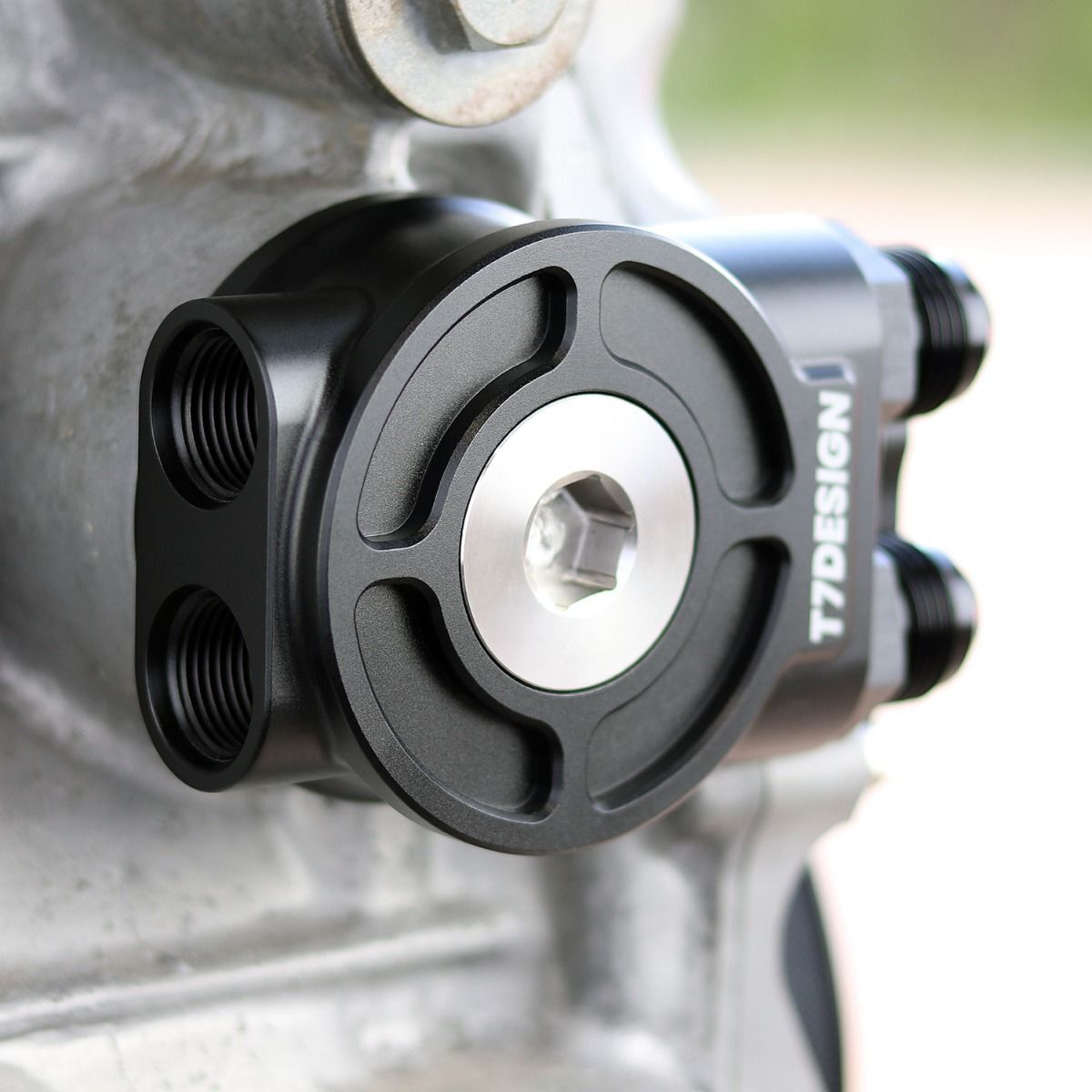

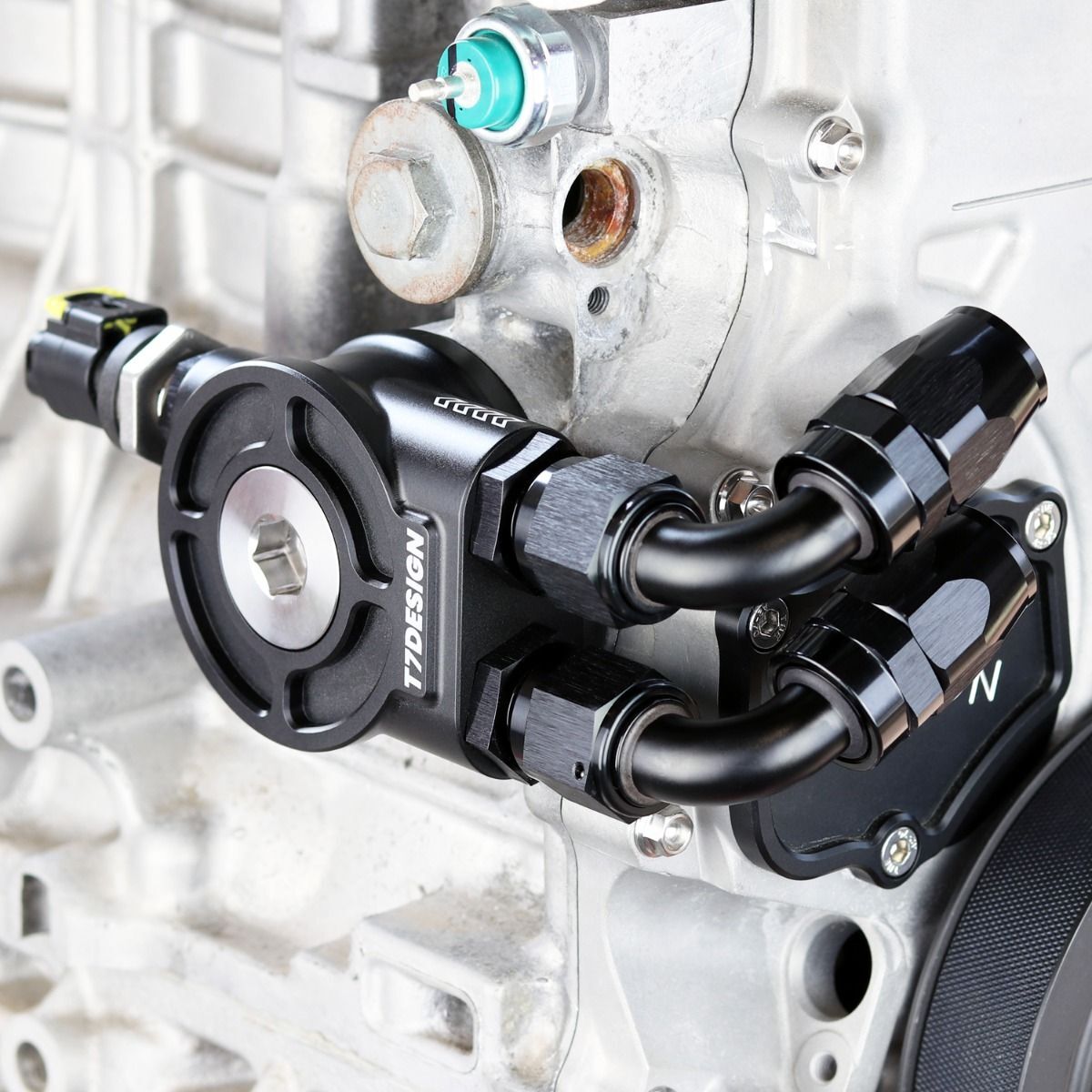

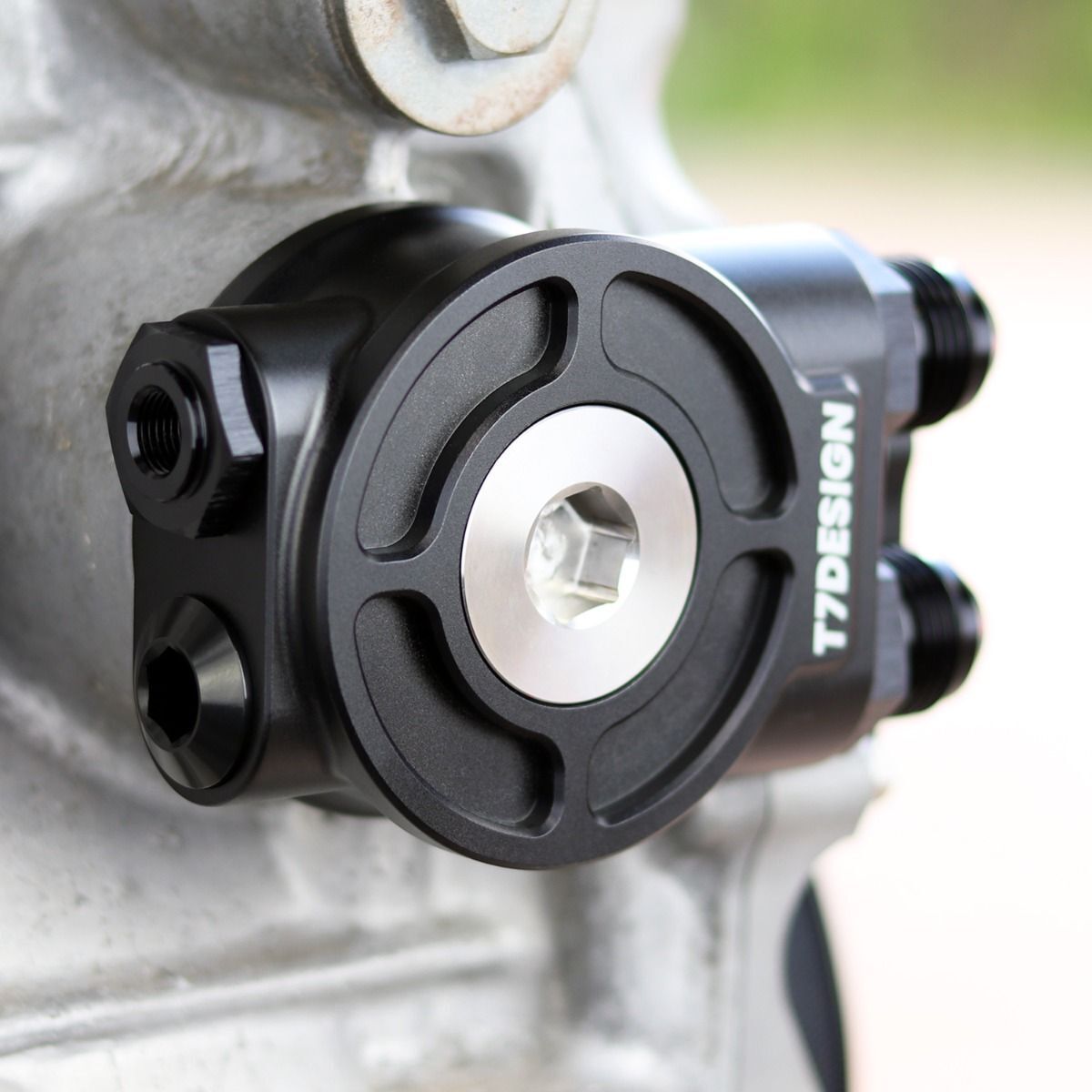

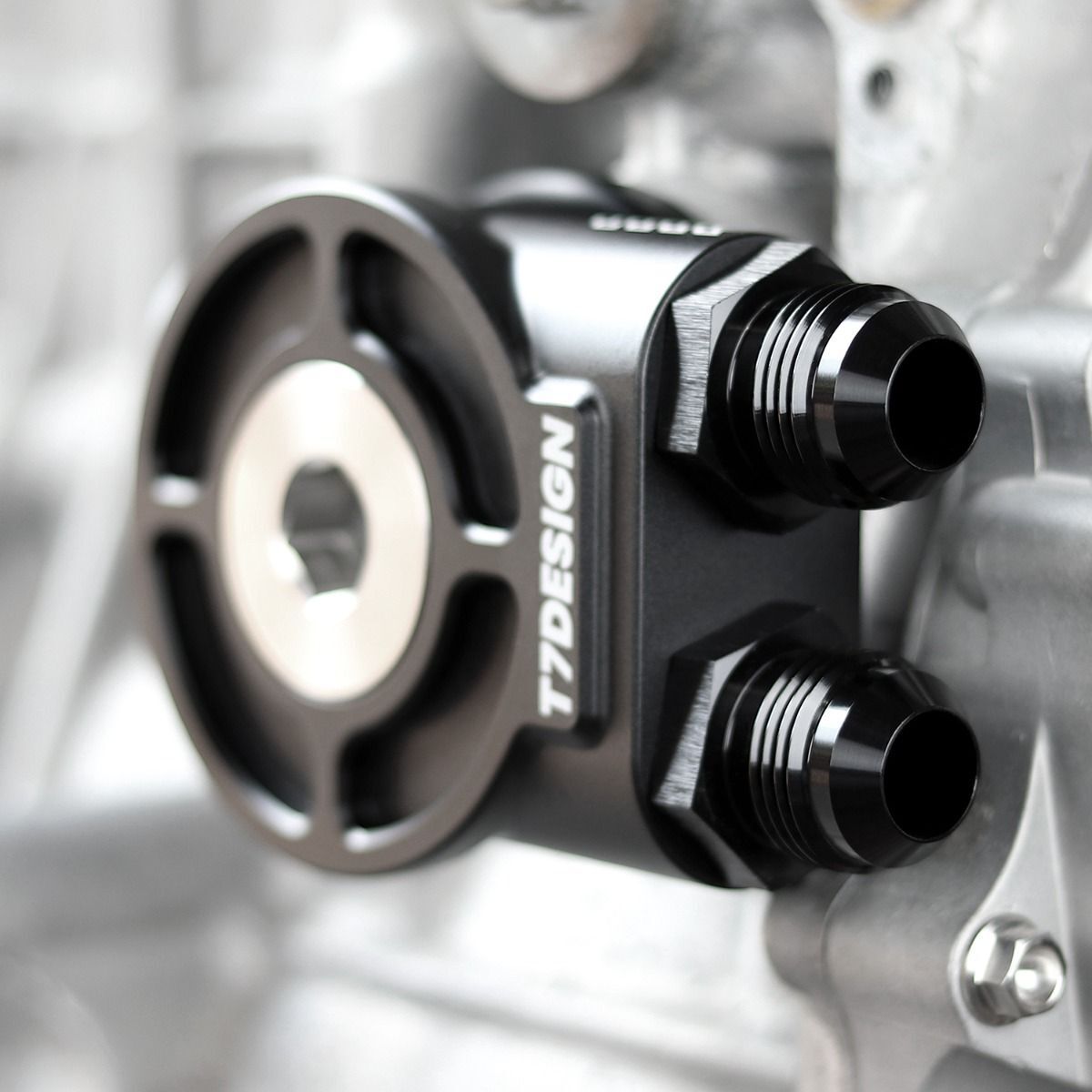

Introducing our new remote oil filter take off plate kit for the Honda K20 and K24 engine. This take off plate has been designed as a direct replacement for the OEM Honda oil cooler doughnut and filter for applications where packaging constraints mean servicing the vehicle is difficult and the oil filter needs to be relocated to a more accessible location. It utilises a bespoke, machined Stainless Steel centre bolt with an o-ring for sealing. Located on the front, two AN10 Male adapters are included to run rubber or braided hose off to your remote oil filter. These ports are also offset just the right amount, so that in tight spaces two 90 degree AN fittings sit as close as possible to the timing chain cover and protrude no further than the crank pulley, this ensures there will be no clearance issues on even the tightest K-swap engine bays! On the opposite side, we have integrated two ORB08 ports to utilise our bespoke adapters for accessories such as temperature senders, pressure sensors, oil feed take off's for Turbo's or to plumb in an Accusump system.
Optional Port Adapters | Function |
ORB08 to AN04 | Take-off for Turbo Oil Feed |
ORB08 to 1/8" NPT | Common Imperial thread size for oil temp sensors and pressure sensors |
ORB08 to M10x1.0 | Machined with the specific conical seat for the Bosch Dual Pressure/Temp Sensor only |
ORB08 to M12x1.5 | Common Metric thread size for oil temp sensors and pressure sensors |
ORB08 to AN08 | Feed for Accusump or other oil accumulator systems** |
Specification | Metric |
Take Off Material | 6061-T6 Aluminium Alloy |
Centre Bolt Material | Stainless Steel |
Finish | Media Blast & Hard Anodised Black |
Manufacturer | T7Design Ltd |
Kit Contents
Quantity | Description |
1x | K20 K24 Remote Oil Filter Take Off Plate Kit |
1x | Main O-Ring |
1x | Stainless Steel Centre Bolt |
1x | Bolt O-Ring |
2x | ORB10 to AN10 Fittings |
ATTENTION
(544-71B-0CD)
SKU | 544-71B-0CD |
Brand | T7 DESIGN |
Shipping Weight | 1.0000kg |
Shipping Width | 0.100m |
Shipping Height | 0.100m |
Shipping Length | 0.100m |
Shipping Cubic | 0.001000000m3 |
