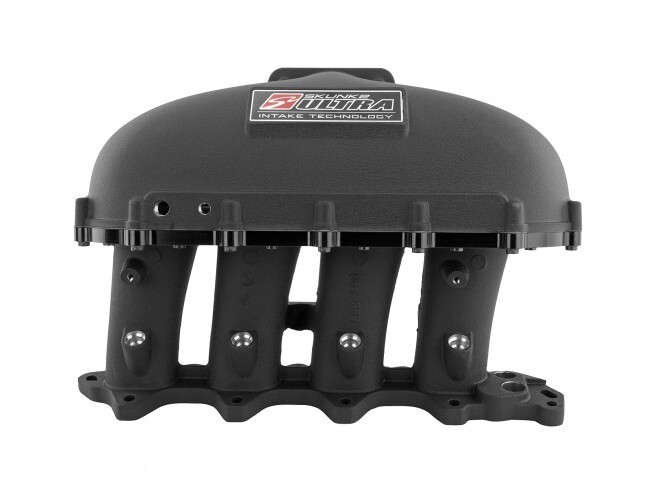

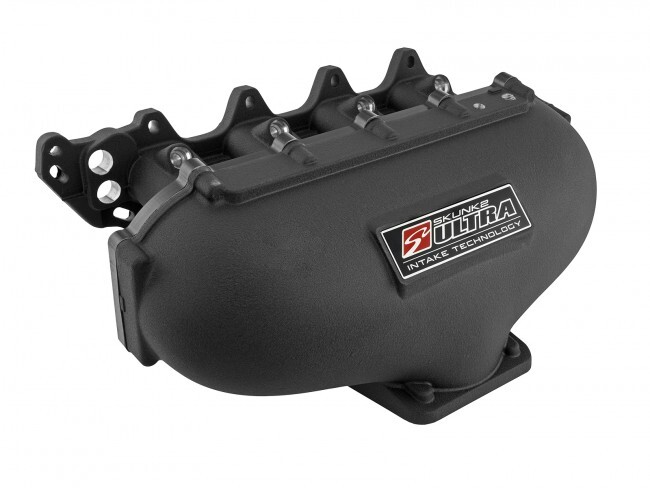

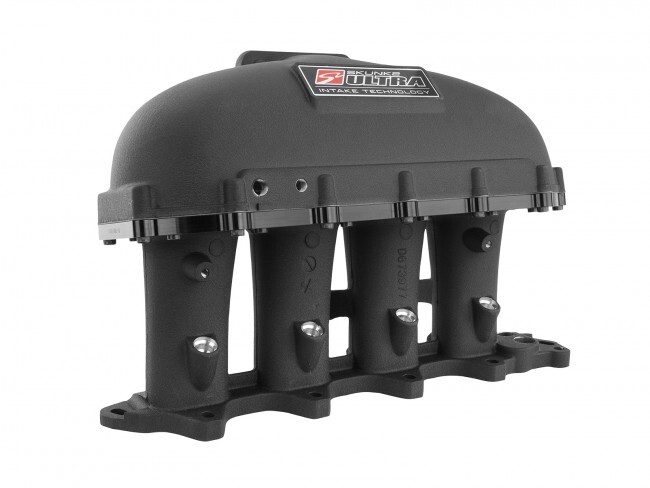

SKUNK2 ULTRA RACE CENTERFEED INTAKE MANIFOLD - B VTEC - BLACK
Skunk2 Racing is proud to announce the next generation of high performance intake manifolds for the Honda B16A/ B17A and B18C engine or VTEC cylinder heads!
The much anticipated Ultra Race Centerfeed Intake Manifold is the result of years worth of R&D and building upon the performance legacy of our Pro Series Intake Manifold. Using the latest in CFD (Computational Fluid Dynamics) software; Skunk2 Racing has created a three-piece modular design that allows for easy disassembly, porting, and plenum volume changes through the use of a removable plenum and optional plenum spacers. The result is a design that is less restrictive, yielding both torque and power gains well over many of the competitors.
FEATURES:
Modular 3pc. Design w/ Removable Plenum
5.0L Plenum Volume**

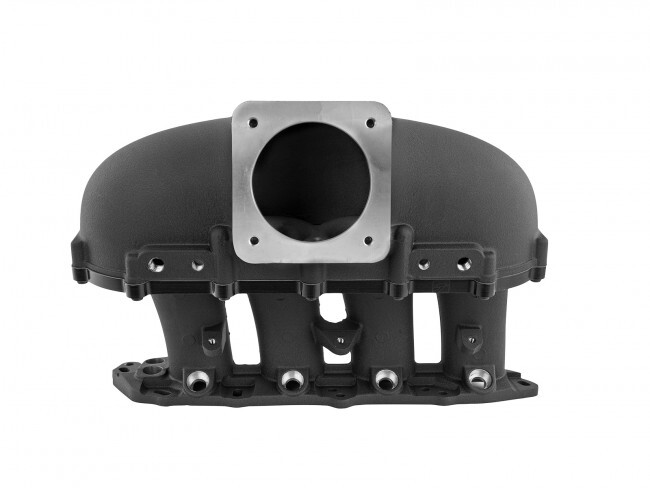

90mm Throttle Body Flange - Std. 5.0L Ford Pattern
6.0” Tapered Hi-Velocity Runners
Raised 87mm Velocity Stacks
Generously Cast Runner Walls for Porting
Provisions Secondary Fuel Rail & Injectors
Universal Mounting Flange Fits All B VTEC Cylinder Heads

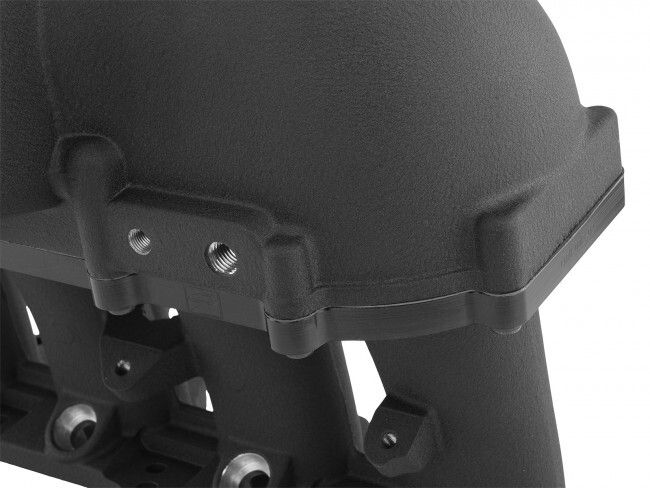

3 x 1/8” NPT and 3 x 1/4” NPT Accessory Ports

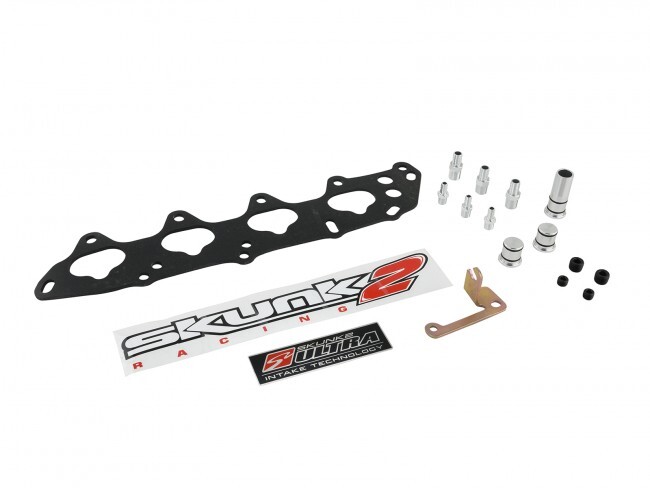

Hi-Grade Mounting Hardware
Thermal Gasket Included
Fits MOST Popular Chassis Configurations - Not Just Race Cars - See Notes
**Optional Billet Aluminum Plenum Spacers Available in 1L or 2L Sizes
US Patent: D673977
(307-05-9085)
SKU | 307-05-9085 |
Brand | SKUNK2 |
Shipping Weight | 50.0000kg |
Shipping Width | 0.050m |
Shipping Height | 0.050m |
Shipping Length | 0.050m |
