QKE8J is a 5-speed sequential gearkit for the EP3 and FN2 versions of the Honda Civic Type R as well as the DC5 Intregra. Ideally suited to circuit racing, drag racing and rally use it’s designed as a direct replacement for the standard six-speed H-pattern Honda transmission.
QKE8J features a replacement Quaife outer gearbox case incorporating an additional support bearing between 4th and 5th gear. A compact, drum style sequential gearchange mechanism and an open face dog design ensure an ultra rapid, positive gear sequential shift.
QKE8J re-uses the original EP3/FN2/DC5 bellhousing half of the transmission casing, enabling the retention of the Honda clutch, differential, driveshafts and mounting points. Wide straight cut (spur) close-ratio gears minimise transmission losses and offer a choice of rally, race or drag race gearing. There is also the choice of a helical set for road and track day applications.
Key technical features of the QKE8J five-speed Honda EP3/FN2/DC5 sequential gearkit include:-
- Strengthened outer casing and five wider gears
- Ultra fast sequential gearshift with straight cut or helical close-ratio gears
- Retains stock EP3/FN2/DC5 clutch, diff, driveshafts and mounts
- Optional LED digital gear position indicator available
- Optional Quaife ATB for both standard driveshafts (QDF9U) and 28T DSS uprated shafts (QDF17U)

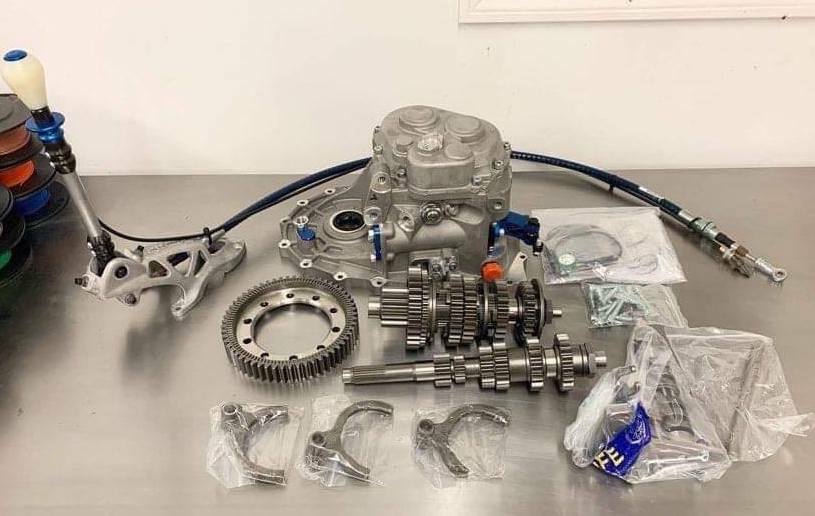

PLEASE NOTE: The Quaife QKE8J package includes the new transmission housing, gear lever and cable.
*Version 2 Update* We are now supplying the QKE8J Version 2 which has been updated with a revised shift mechanism which incorporates the ability to connect a pneumatic shift system directly to the gearbox from factory.
Gear Ratios
1ST 2ND 3RD 4TH 5TH
3.100 / 2.067 / 1.421 / 1.048 / 0.870 - DRAG SET
FINAL DRIVE RATIOS3.800 SPUR
4.143 SPUR
OPTIONAL PARTS (SOLD SEPARATELY):
-
GEAR POSITION SENSOR
-
STRAIN GAUGE SHIFT KNOB
NOTE: Please contact us prior to ordering so we can ensure you get the appropriate gear ratios and final drive!
(QKE8J-V2-drag)
SKU | QKE8J-V2-drag |
Brand | QUAIFE |
Shipping Weight | 25.0000kg |
Shipping Width | 0.700m |
Shipping Height | 0.300m |
Shipping Length | 1.000m |
Shipping Cubic | 0.210000000m3 |
