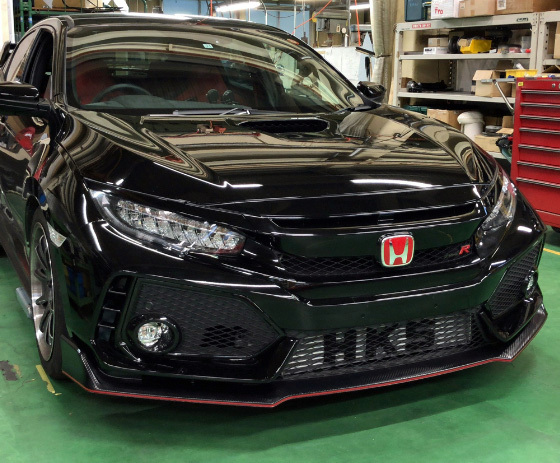

HKS INTERCOOLER FULL KIT -HONDA CIVIC FK8 TYPE R 17+
Code No. 13001-AH005
|
Best Layout with Best Core Size Designed for the Fastest FF CIVIC TYPE-R(FK8).
【CONCEPT】
- The K20C engine achieves 320ps with 2.0L displacement, and the boost pressure exceeds 150kPa. Since the stock intercooler’s capacity is insufficient, the engine intake air temperature rises to nearly 90℃.
→HKS intercooler is using a larger size intercooler to maintain cooling performance. - The stock intercooler piping layout has a sharp bend so the intake air does not flow smoothly and causes the boost pressure loss.
→HKS intercooler integrates the inlet side tank of the intercooler and pipe to realize a smooth air flow and reduce air intake loss.
【Features】
- Newly designed 100mm wide core is approximately 200% of the stock in the core capacity. This large core shows overwhelming cooling performance difference.
Core Size ★HKS:695mm x 178mm x 100mm ★Stock:680mm x 143mm x 64mm - Minor modification of the fan shroud and rubber part that comes in contact with the core is required.
【Test Data】
Vehicle | Model | Engine | Model Year | Type | Core Size・Location | Type | Code No. | Price | Remarks |
---|---|---|---|---|---|---|---|---|---|
CIVIC TYPE R | FK8 | K20C | 17/09- | R type INTERCOOLER | 695x178x100 | R type | 13001-AH005 | ・Installation requires approx. 3.5 hours. ・I/C core only ・For a vehicle with 13002-AH001 PPK for FK8 |
(13001-AH004)
SKU | 13001-AH004 |
Brand | HKS |
Shipping Weight | 50.0000kg |
Shipping Width | 0.050m |
Shipping Height | 0.050m |
Shipping Length | 0.050m |
